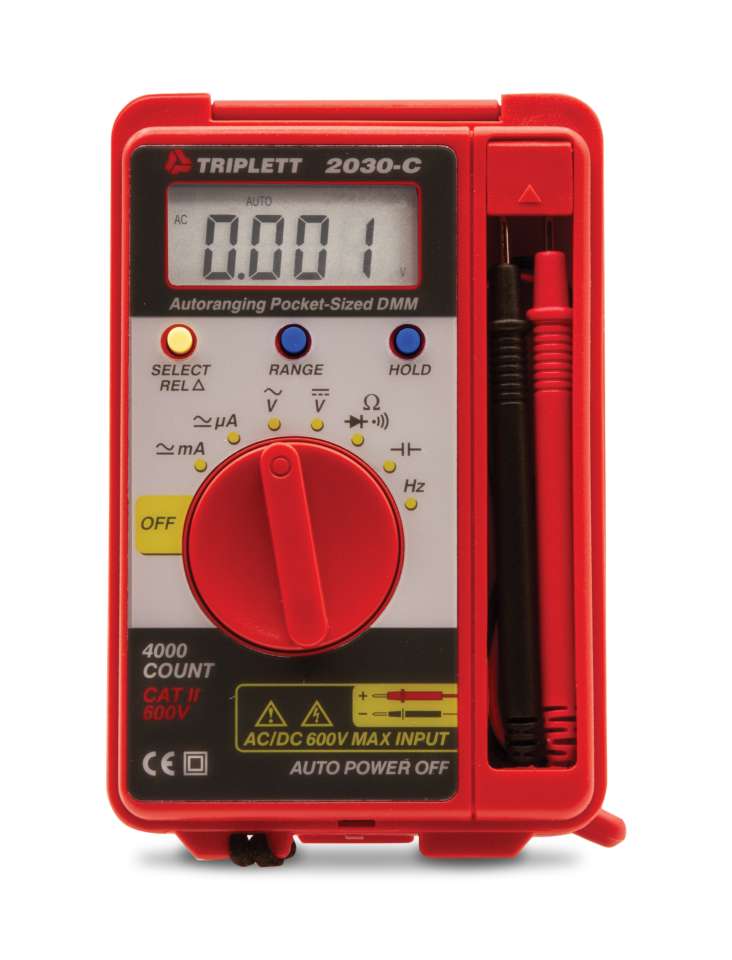

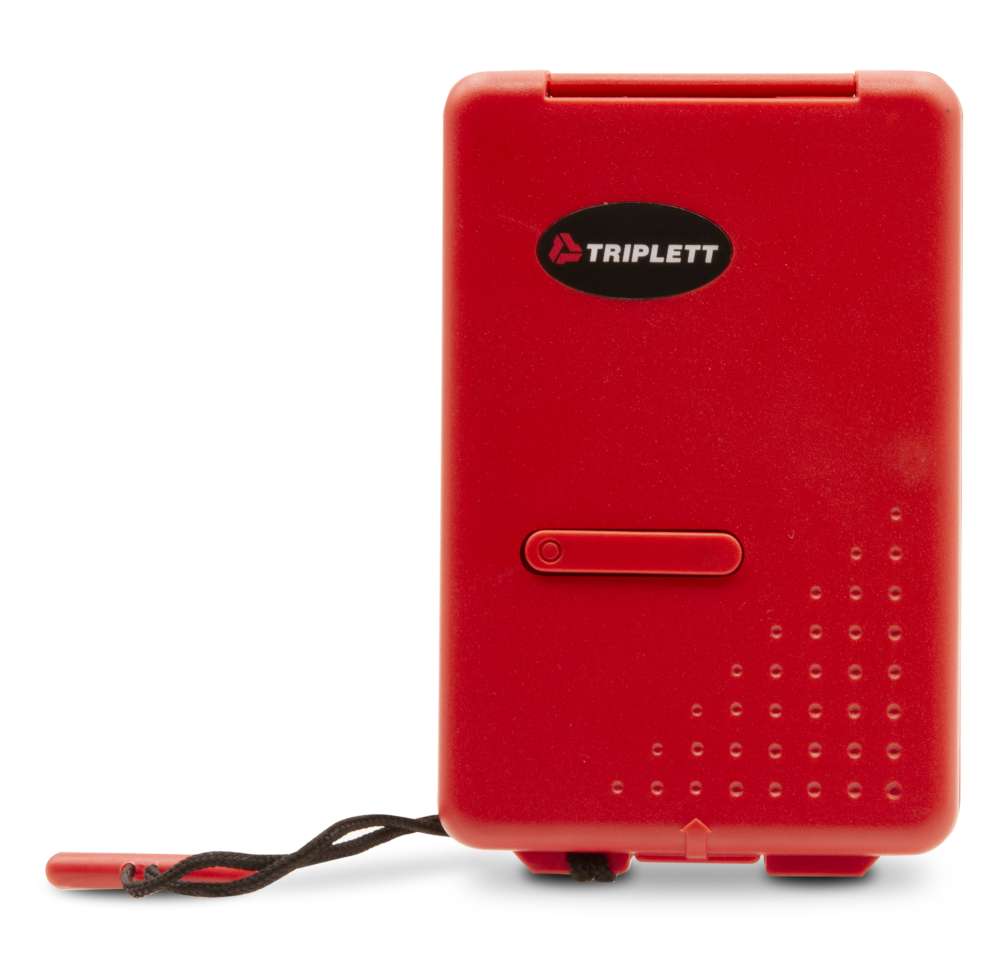

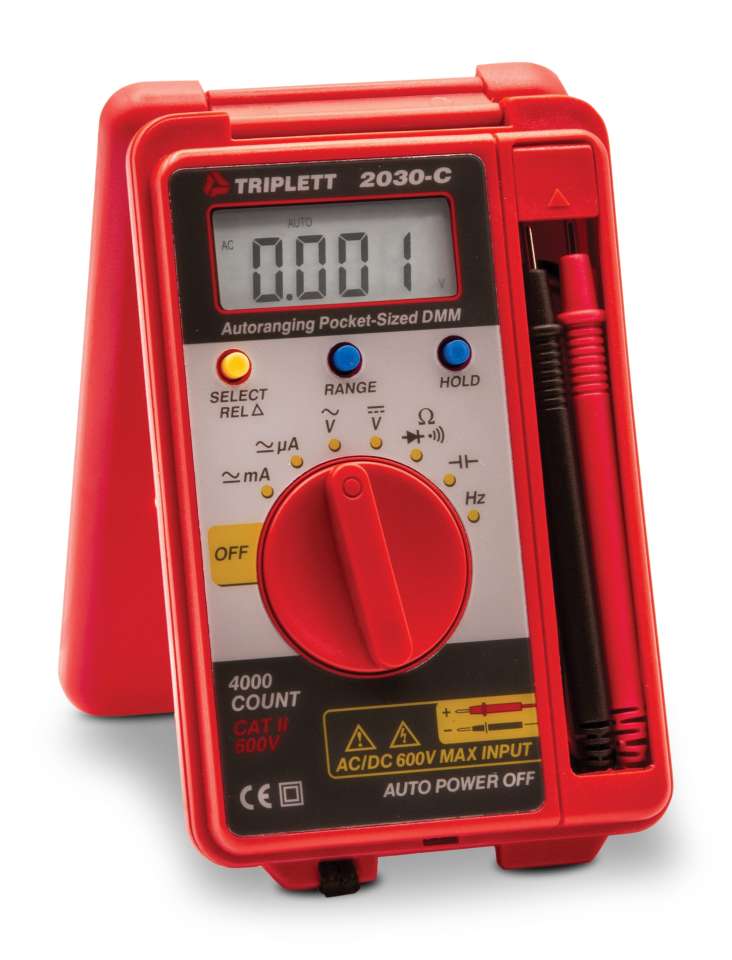

The Triplett 2030 is a 3-3/4 digit (4000 count) pocket sized digital multimeter with a built-in hard case. It offers a variety of measurement features including AC/DC Voltage, AC/DC Current, Resistance, Continuity, Diode Test, Frequency, and Capacitance. The ABS plastic housing provides impact and drop resistance in an ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. Includes integrated test leads and (2) LR44 batteries. 3 year warranty.
Features:
- 37 ranges including AC/DC Voltage to 600V and AC/DC Current to 400mA
- Frequency and Capacitance measurement with diode and continuity tests
- 3-3/4 Digit, 4000 count display
- Includes integrated test leads and (2) LR44 batteries with 3 year warranty
Includes: Includes Integrated test leads and (2) LR44 batteries
Battery Type: (2) LR44
| Specifications |
|---|
| Auto/Manual Ranging | Autoranging |
| True RMS/Averaging | Averaging |
| Basic Accuracy | ±0.8% |
| AC Voltage | 0.1mV to 600V |
| DC Voltage | 0.1mV to 600V |
| AC Current | 0.1µA to 400mA |
| DC Current | 0.1µA to 400mA |
| Resistance | 0.1Ω to 40MΩ |
| Capacitance | 0.01nF to 100µF |
| Frequency | 0.01Hz to 5kHz |
| Duty Cycle | 0.1 to 99.9% |
| Safety Category | CAT II-600V |
| Dimensions | 3.2 x 4.8 x 0.8" (81.2 x 122 x 20.3mm) |
| Weight | 4 oz. (113.4g) |
Datasheet: https://www.files.triplett.com/datasheet/2030.pdf
User Manual: https://www.files.triplett.com/manual/2030.pdf
