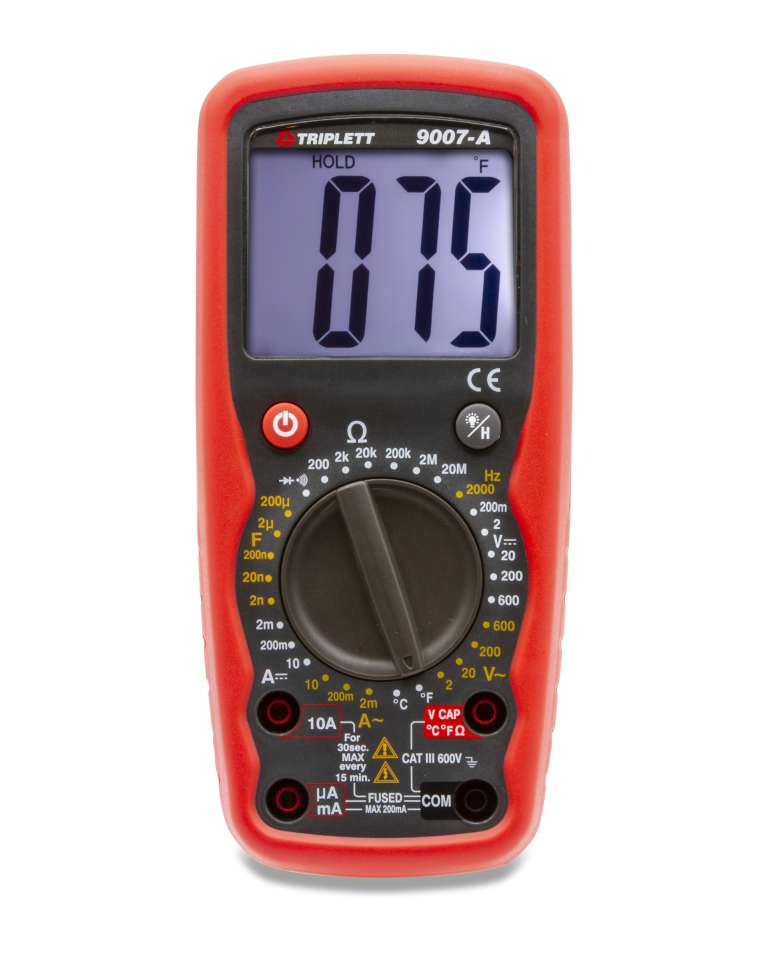

The Triplett Model 9007-A is a 3-1/2 digit (2000 count) manual ranging high performance digital multimeter with a large backlit LCD display. It measures AC/DC Voltage, AC/DC Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test.

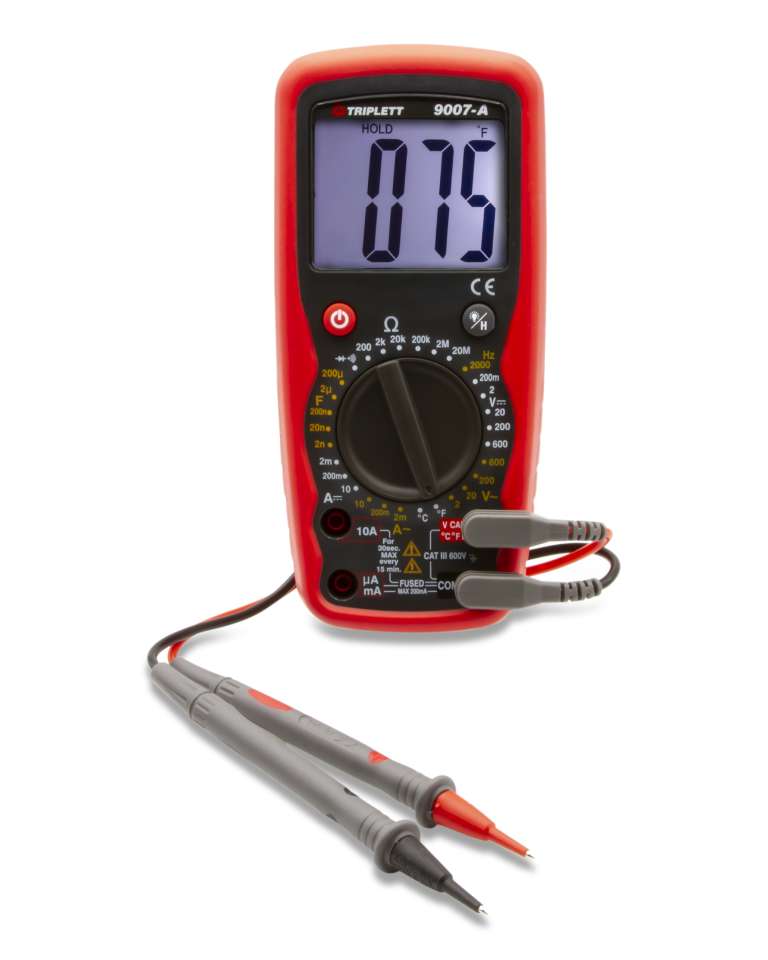

The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximizes battery life. CAT III 600V safety rating. Complete with test leads, alligator clips, Type K temperature probe, and 9V battery. 3 year warranty.
Features:
- 31 measurement ranges, 3 ½ digit resolution with large 1.4” backlit display
- AC/DC Voltage to 600V and AC/DC Current to 10A
- Temperature, Frequency and Capacitance measurement
- CAT III 600V, Data Hold, Auto power off, and Low battery indicator
- Lead time for NIST Certified products is 5-7 business days
- Upon order placement, please provide the company name that should appear on the certificate. Without this information, we will not be able to provide a certificate of calibration.
| Specifications |
| Auto/Manual Ranging |
Manual |
| True RMS/Averaging |
Averaging |
| Basic Accuracy |
±0.5% |
| AC Voltage |
1mV to 600V |
| DC Voltage |
1mV to 600V |
| AC Current |
0.1µA to 10A |
| DC Current |
1µA to 10A |
| Resistance |
0.1Ω to 20MΩ |
| Temperature |
-4 to 1400°F (-20 to 760°C) |
| Capacitance |
1pF to 200µF |
| Frequency |
1Hz to 2000Hz |
| Safety Category |
CAT III-600V |
| Dimensions |
7.1 x 3.2 x 2.1" (182 x 82 x 55mm) |
| Weight |
12.7 oz. (360g) |
