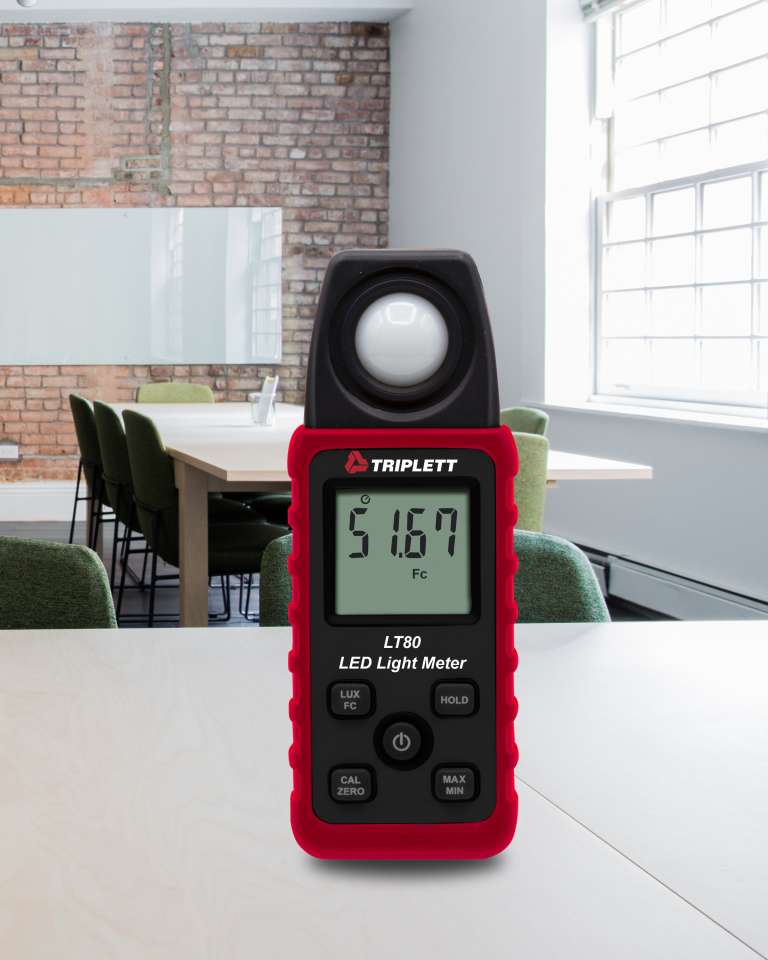

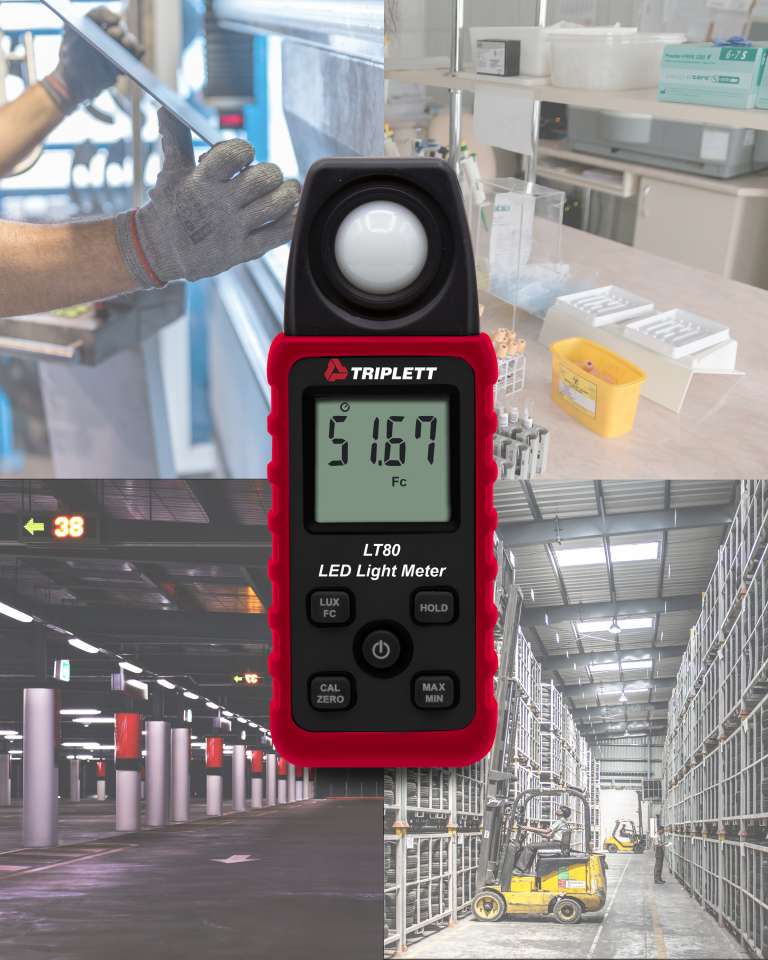

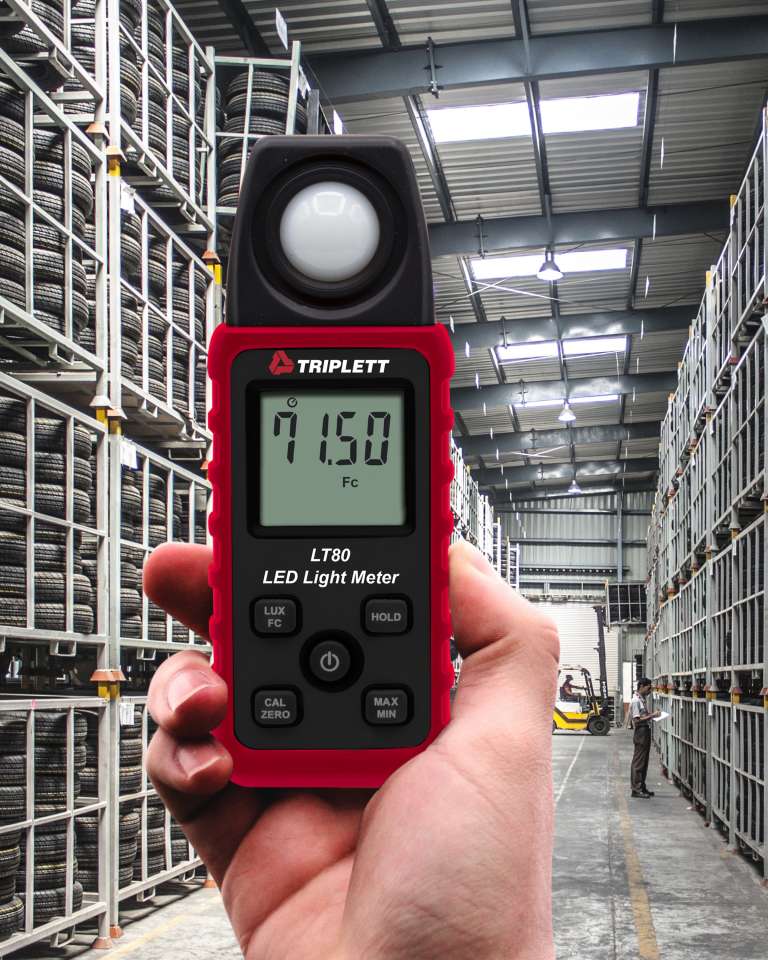

The Triplett Model LT80 LED Light Meter measures light intensity and verify OSHA safety requirements from white LED light sources up to 40k Foot candles (400k Lux. ) now being incorporated in factories, parking lots, schools, offices, transportation lines, warehouses, hospitals, schools, and many other environments. It will also measure light from fluorescent, metal halide, high‐ pressure sodium, and incandescent sources. It features a 9,999 count LCD display, silicon photodiode sensor with spectral response filter, Min/Max/Avg function that recalls the highest, lowest and average reading, Data Hold to freeze the reading on the display for easy viewing, and auto power off (with disable) to conserve battery life. Includes Certificate of Traceability to N.I.S.T., 2 AAA batteries and pouch case. 1-year warranty.
Features:
- Measures light intensity from white LED light sources up to 40k Foot candles (400k Lux)
- Measures light from fluorescent, metal halide, high‐ pressure sodium, and incandescent sources
- 9,999 count LCD display
- Silicon photodiode sensor and filter
- Min/Max/Avg function recalls highest, lowest and average reading
- Data Hold freezes readings on the display
- Auto power off with disable

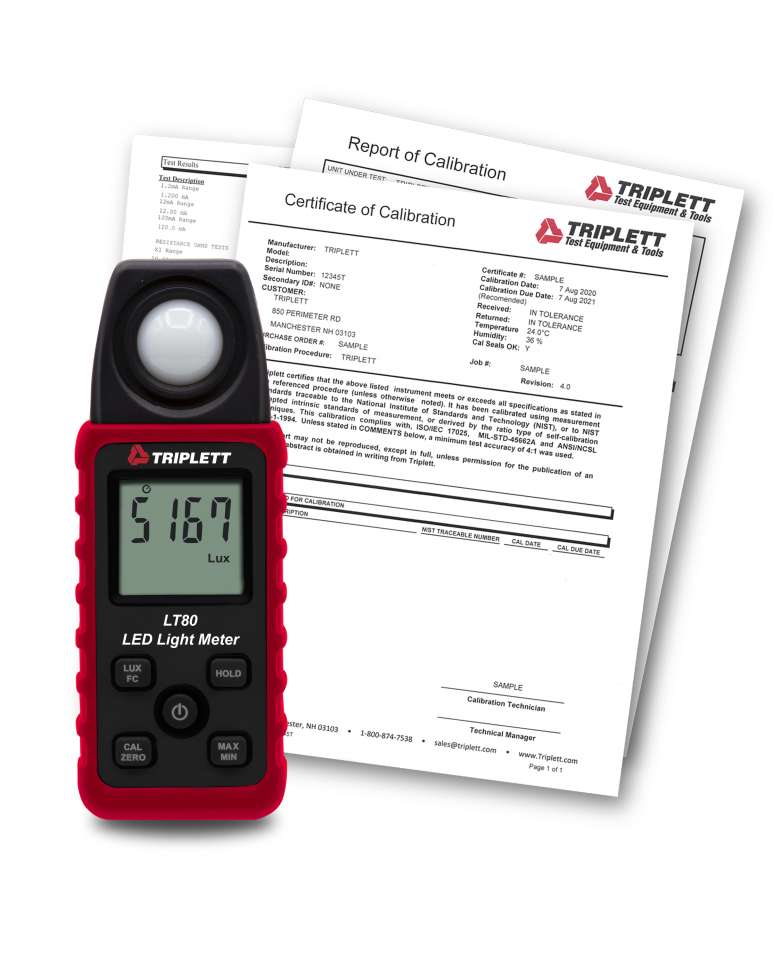

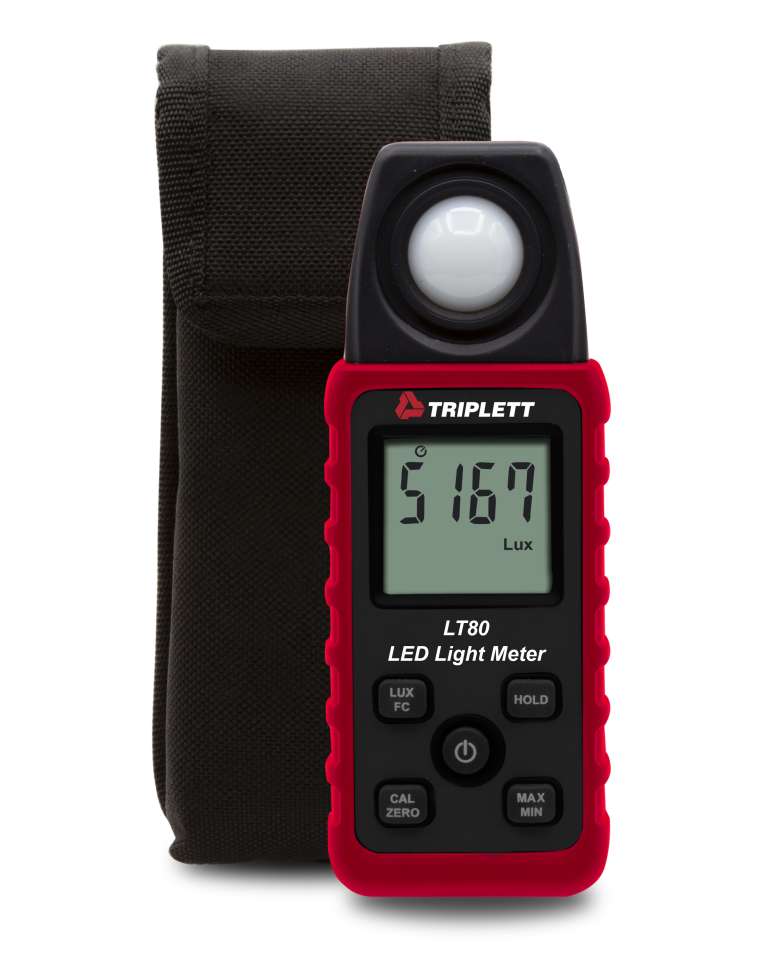

Includes: Includes Certificate of Traceability to N.I.S.T., 2 AAA batteries and pouch case
Battery Type: (2) AAA batteries
| Specifications |
|---|
| LT80 |
| Display | 4 Digit LCD Display |
| Foot Candle Range | 0 to 40,000 Fc |
| Lux Range | 0 to 400,000 Lux |
| Resolution | 0.01 Fc/0.1 Lux |
| Accuracy | White LEDs: ±3% reading ±30d (0 to 50Fc/0 to 500 Lux)
±3% reading(>50FC/500 Lux)
Other Light Sources: For reference only |
| Sensor | Silicon light diode and spectral response filter |
| Power | (2) AAA batteries |
| Dimensions (Meter) | 5.3 x 1.9 x 0.2" (133 x 48 x 23mm) |
| Weight | 8.8oz (250g) |
