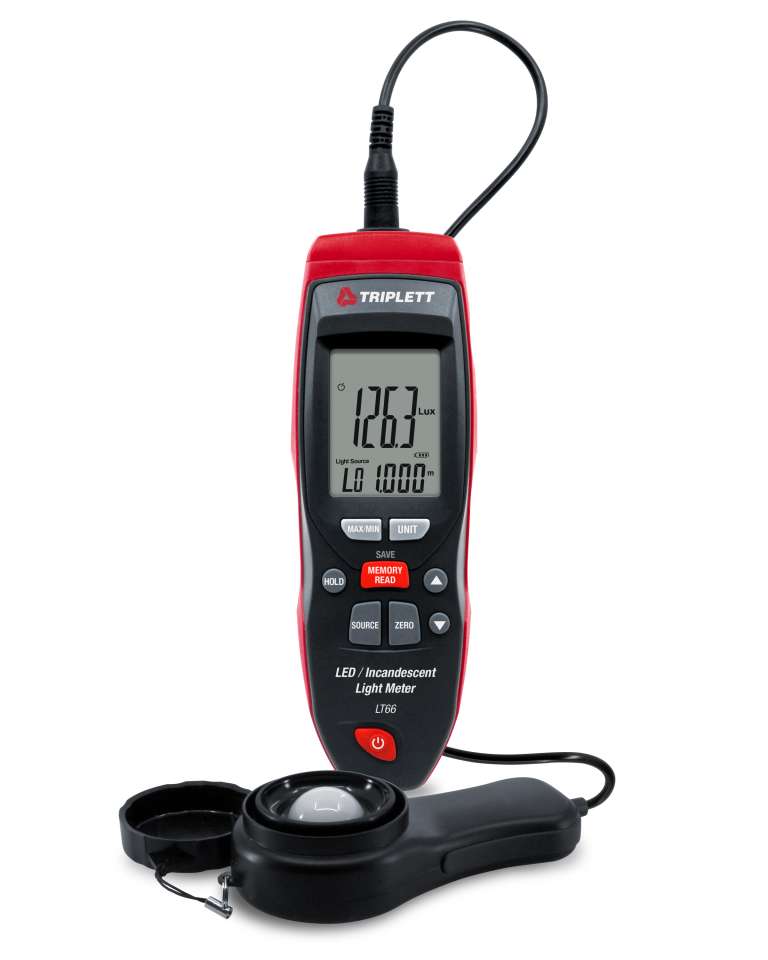

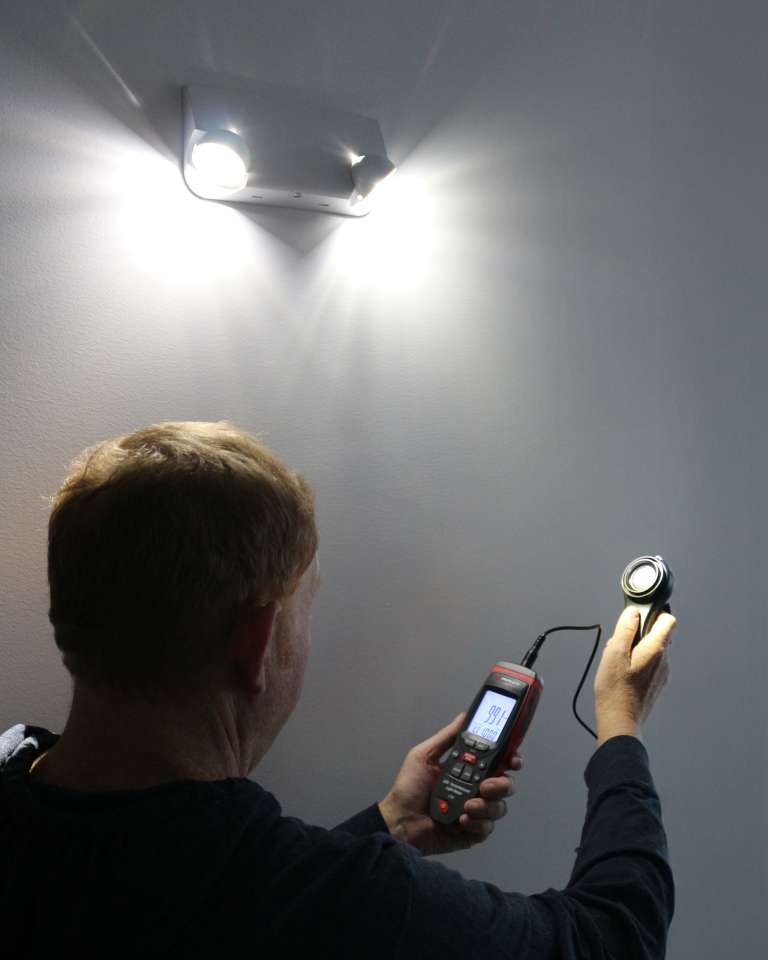

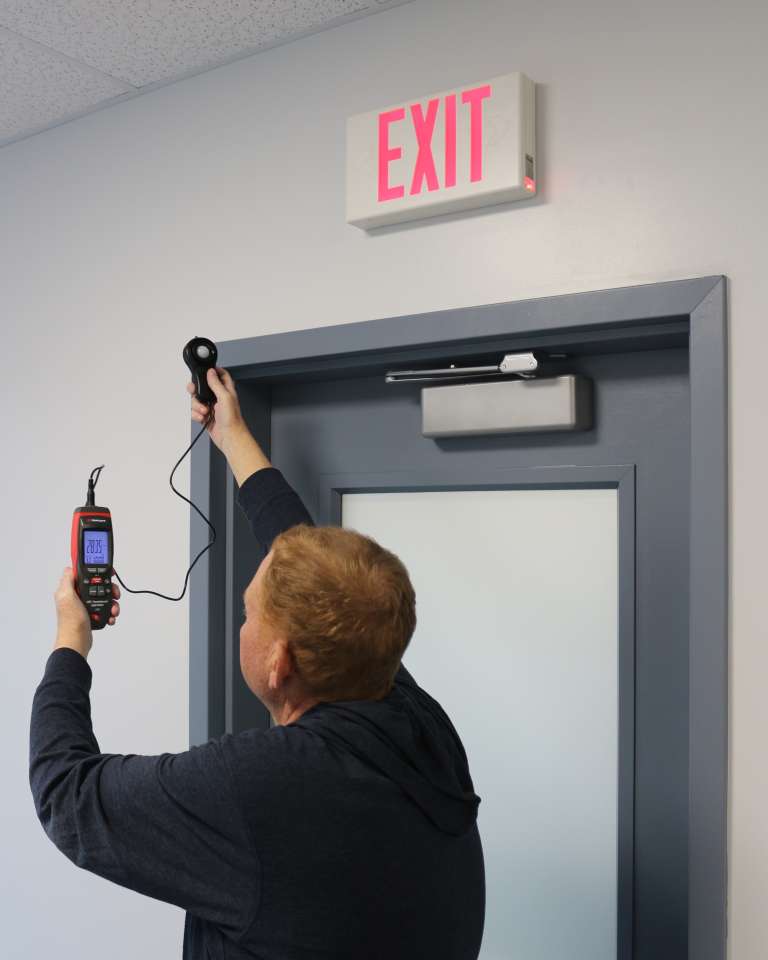

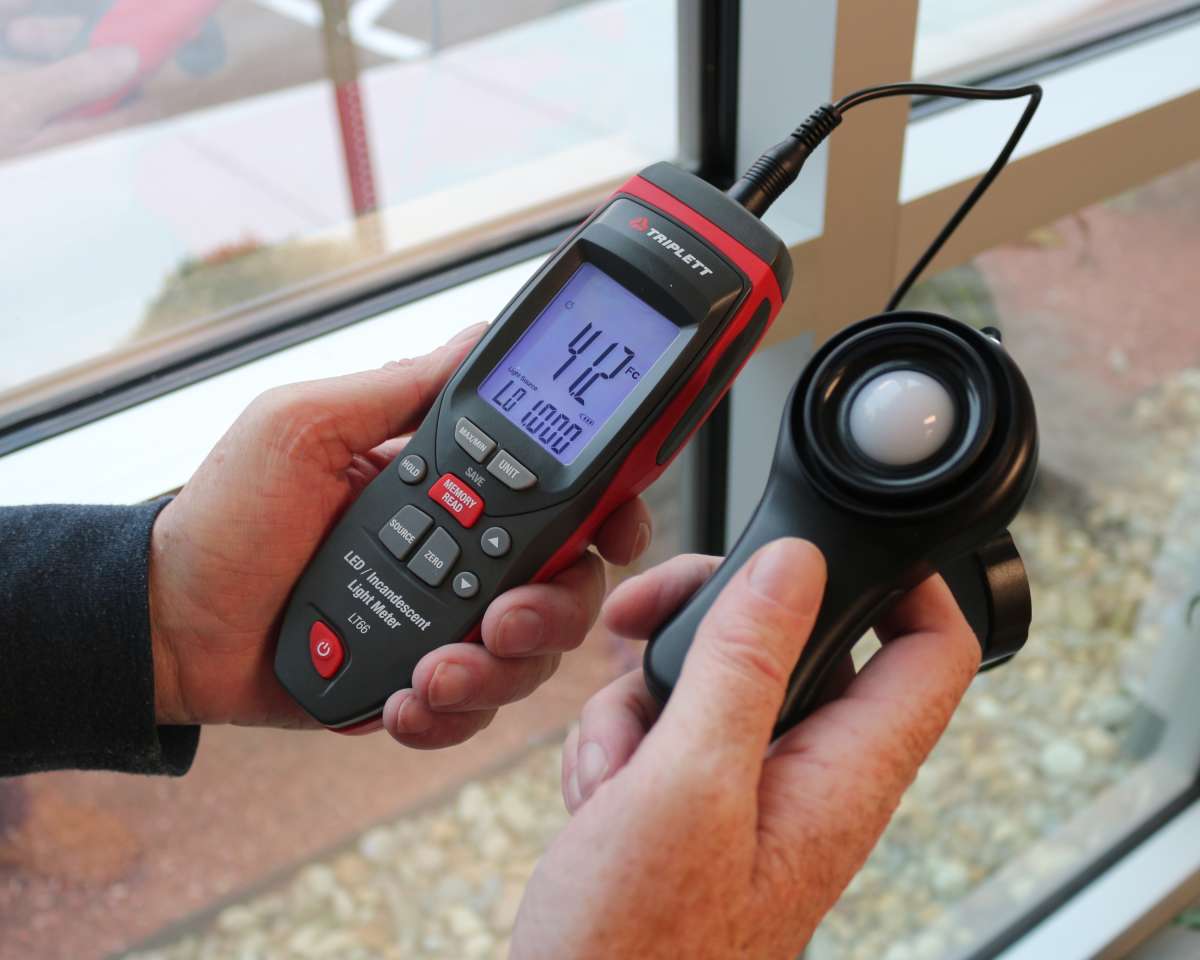

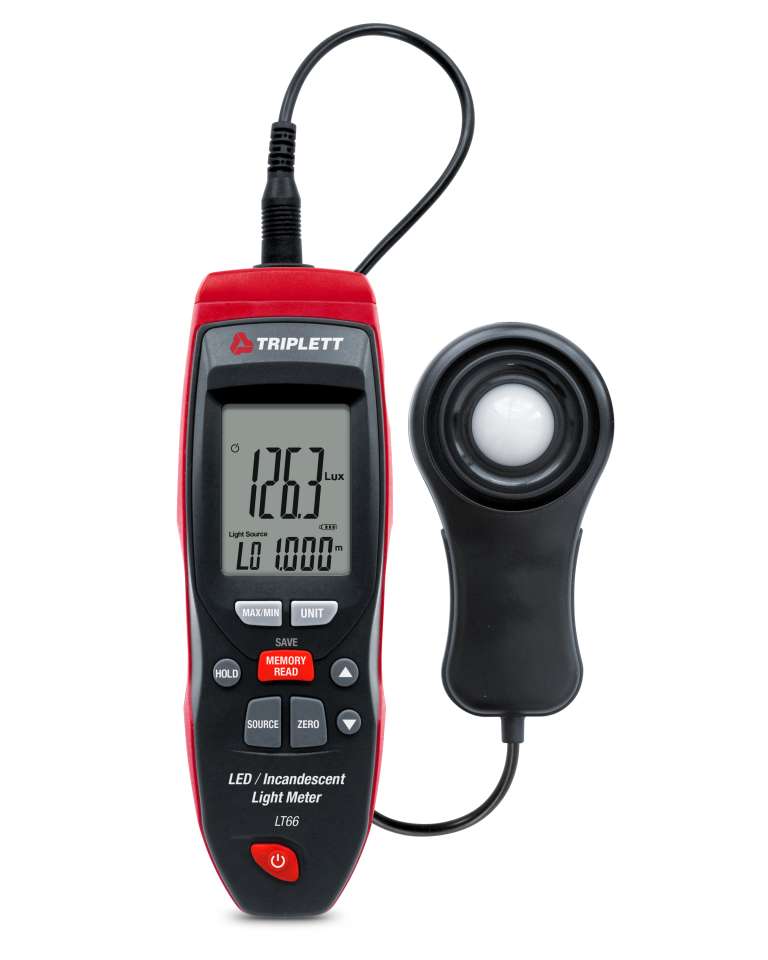

The Triplett Model LT66 Color LED Light Meter measures light intensity to verify OSHA safety requirements from white, red, yellow (amber), green, blue, purple LED light sources up to 40k Foot candles (400k Lux) now being incorporated in factories, parking lots, schools, offices, transportation lines, warehouses, hospitals, schools, and many other environments. It will also measure light from fluorescent, metal halide, high‐ pressure sodium, and incandescent sources. It features a 4000 count LCD display, silicon photodiode sensor with spectral response filter, Min/Max/Avg function that recalls the highest, lowest and average reading, Data Hold to freeze the reading on the display for easy viewing, and auto power off (with disable) to conserve battery life. Includes light sensor with 5ft (1.5m) cable, 9V battery and pouch case. 2-year warranty.
Features:
- Measures light intensity from white, red, yellow (amber), green, blue, purple LED light sources up to 40,000 Fc
- Measures light from fluorescent, metal halide, high‐ pressure sodium, and incandescent sources
- 4000 count LCD display
- Silicon photodiode sensor and filter
- Zero adjustment sets on-screen digits to zero
- Min/Max/Avg function recalls highest, lowest, and average readings
- Data Hold freezes readings on the display
- Low battery indicator
- Auto power off with disable

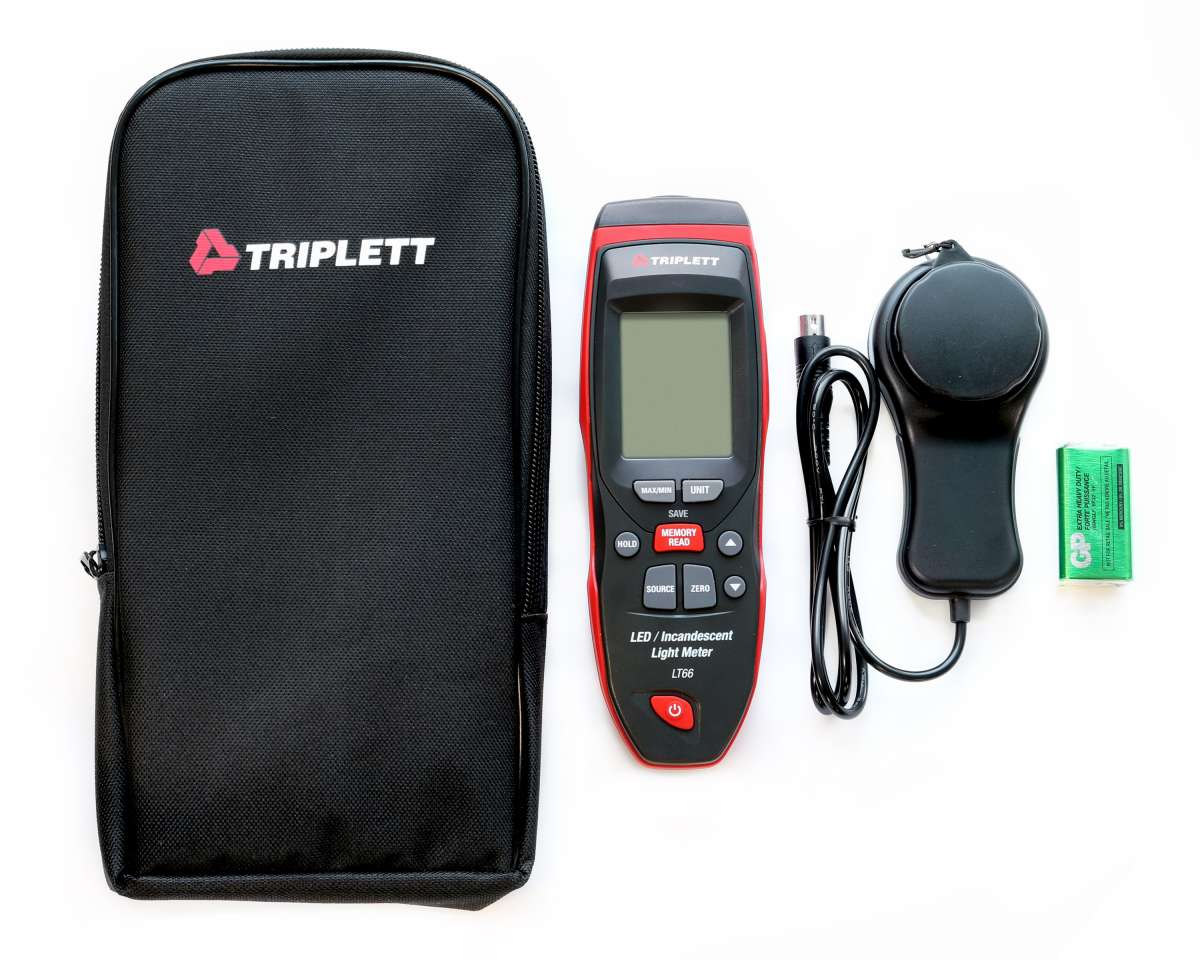

Includes: Includes light sensor with 5ft (1.5m) cable, 9V battery and pouch case
Battery Type: 9V battery
| Specifications |
|---|
| LED Light Sources | white, red, yellow (amber), green, blue, purple |
| Standard Light Sources | fluorescent, metal halide, high‐ pressure sodium, incandescent |
| Footcandles Range | 40, 400, 4000, 40000 |
| Lux Range | 40, 400, 4000,40000, 400000 |
| Accuracy | ±3% |
| Resolution | 0.01 Footcandles/Lux |
| Display | 4000 count |
| Sensor | Silicon photodiode and filter |
| Power | 9V Battery |
| Dimensions | 7.3 x 2.6 x 1.8" (185 x 65 x 45mm) |
| Weight | 8.7oz (248g) |
