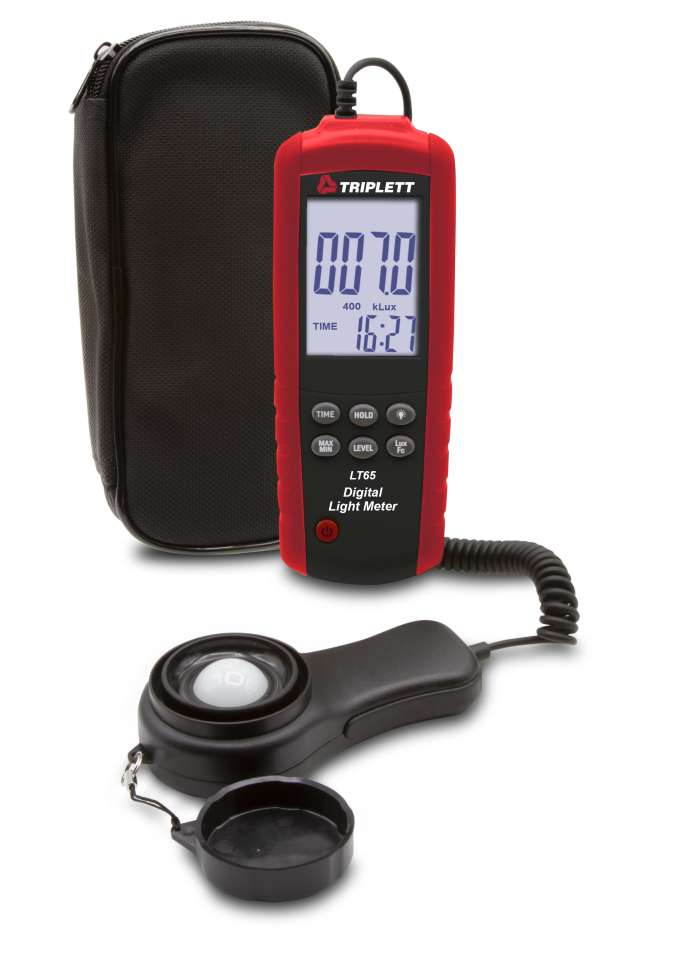

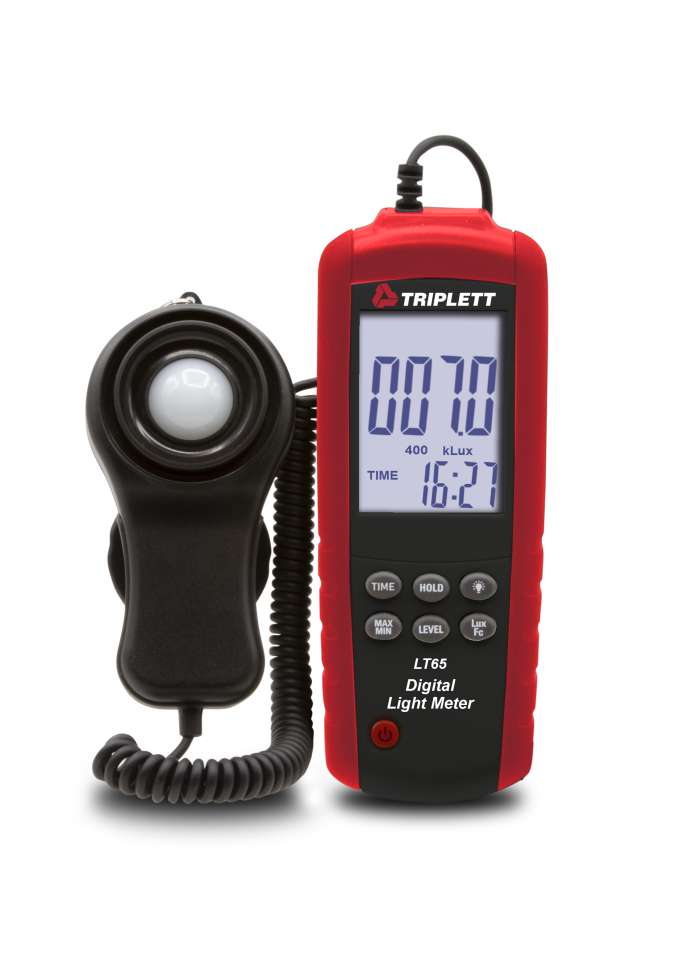

The Triplett Model LT65 Digital Light Meter measures light intensity (up to 40k Foot candles/400k Lux) and verify OSHA safety requirements from fluorescent, metal halide, high‐ pressure sodium, and incandescent sources found in factories, parking lots, schools, offices, transportation lines, warehouses, hospitals, schools, and many other environments.
It features a silicon photodiode sensor with spectral response filter, Min/Max function that recalls highest and lowest readings, Data Hold to freeze the reading on the display for easy viewing, and low battery indicator. Includes 3 AA batteries, and pouch case. 1-year warranty.
Features:
- Measures light from fluorescent, metal halide, high‐ pressure sodium, and incandescent sources up to 40k Foot candles (400k Lux)
- Silicon photodiode sensor with spectral response filter
- Built-in real time clock
- Min/Max function recalls highest and lowest readings
- Data Hold and Low battery indicator
| Specifications |
| Display |
4 Digit LCD Display |
| Foot Candle Range |
0 to 40,000 Fc |
| Lux Range |
0 to 400,000 Lux |
| Resolution |
0.01Fc/0.1Lux |
| Accuracy |
±3% reading ±0.5%FS (<10,000 Lux); ±4%
reading ±10d (>10,000 Lux) |
| Spectral Response |
CIE Appropriate Light (CIE eye response curve) |
| Light probe |
Silicon light diode and a spectral response filter |
| Datalogging |
87,000 readings |
| PC Interface |
USB |
| Power |
(3) AA batteries |
| Dimensions (Meter) |
6.4 x 2.4 x 1.2" (162 x 62 x 30mm) |
| Dimensions (Probe) |
4.5 x 2.4 x 0.8" (115 x 60 x 20mm); Cable Length: 59" (150cm) |
| Weight |
9.2oz (260g) |
