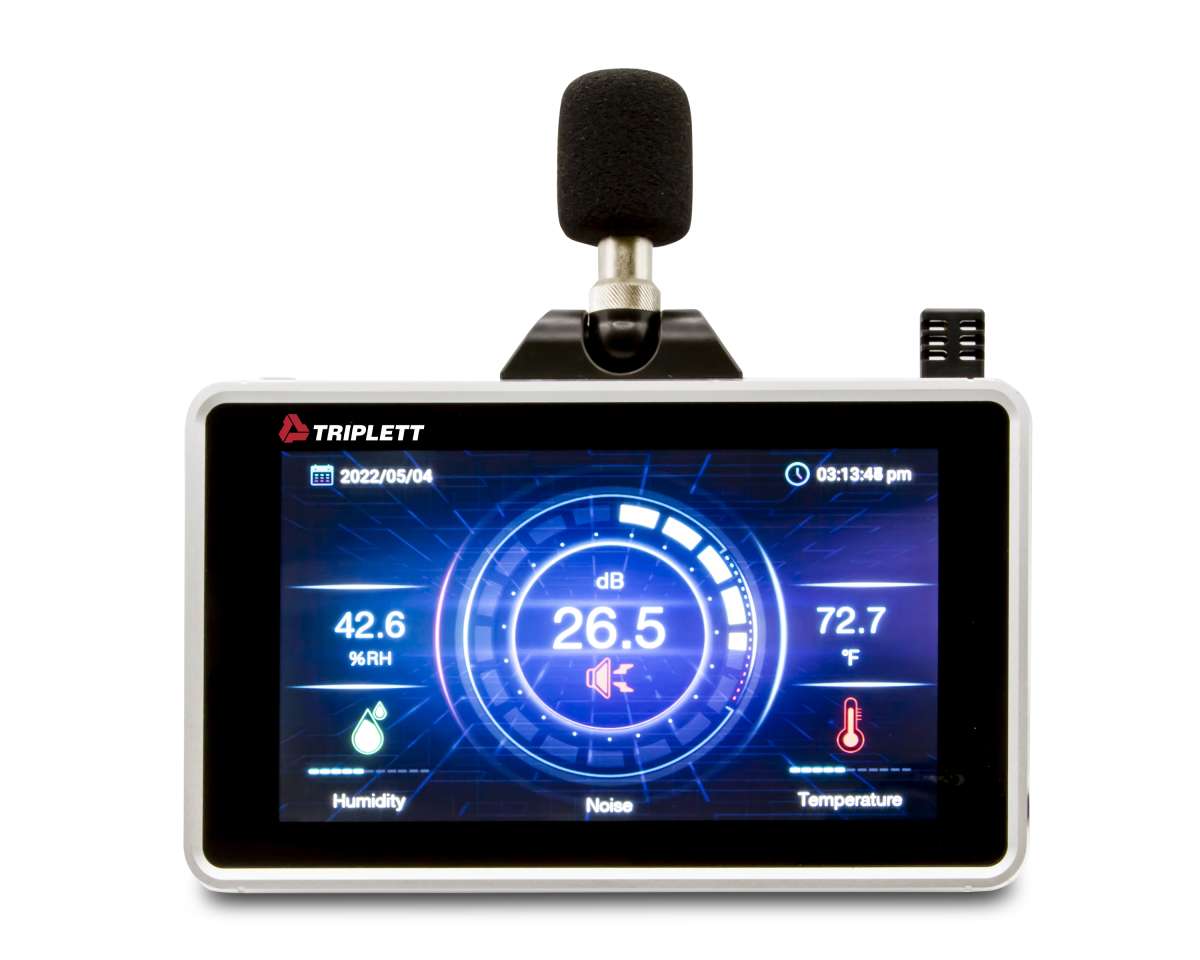

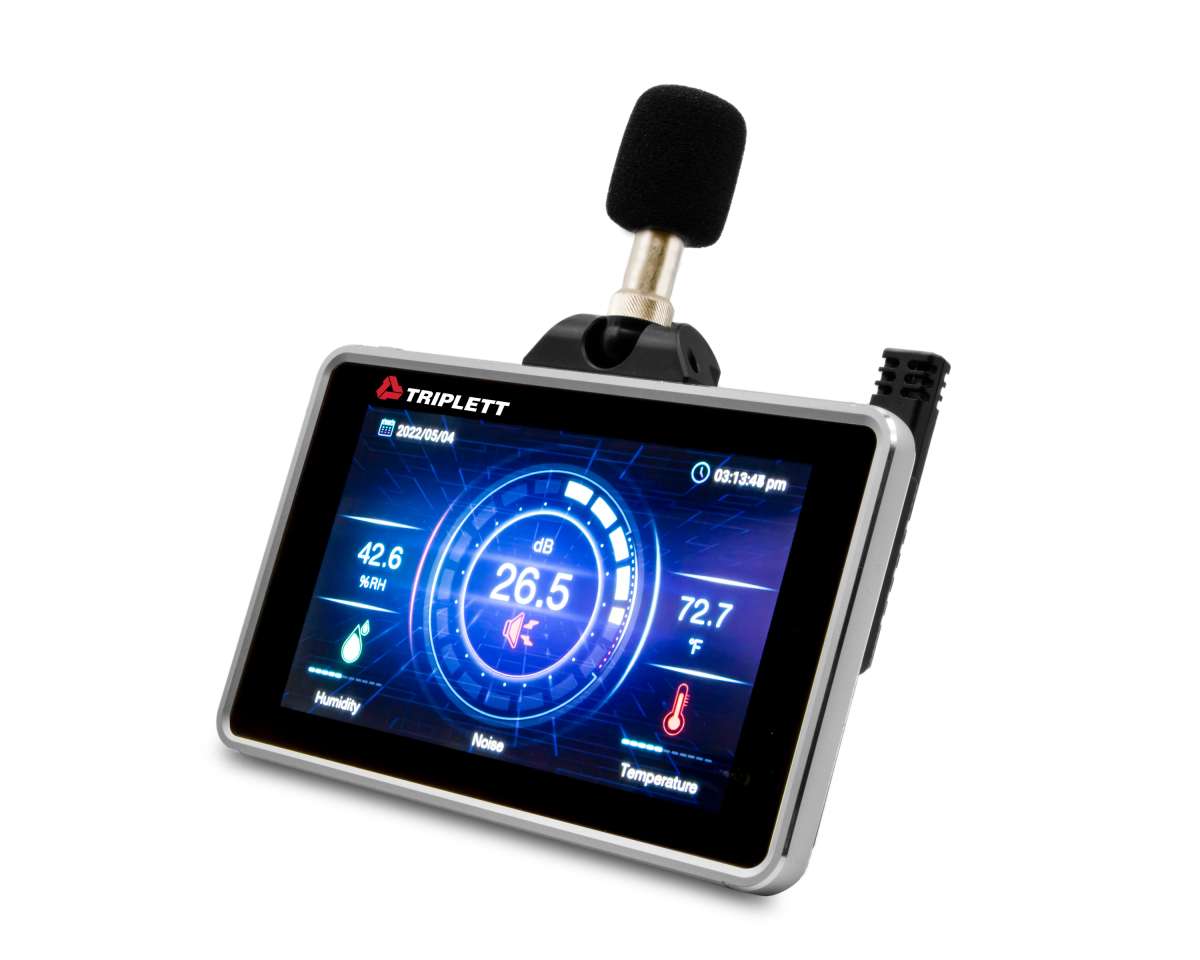

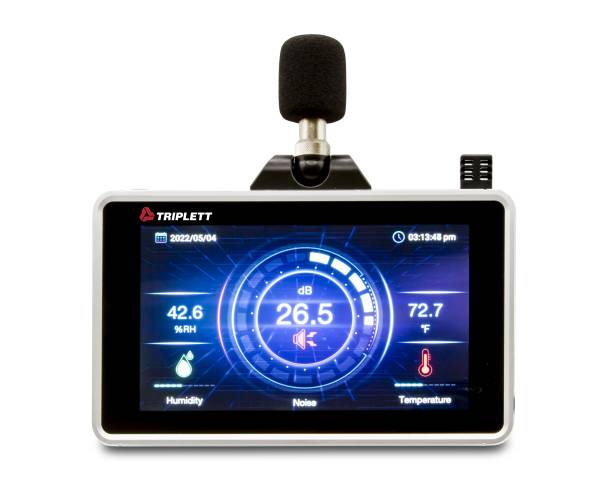

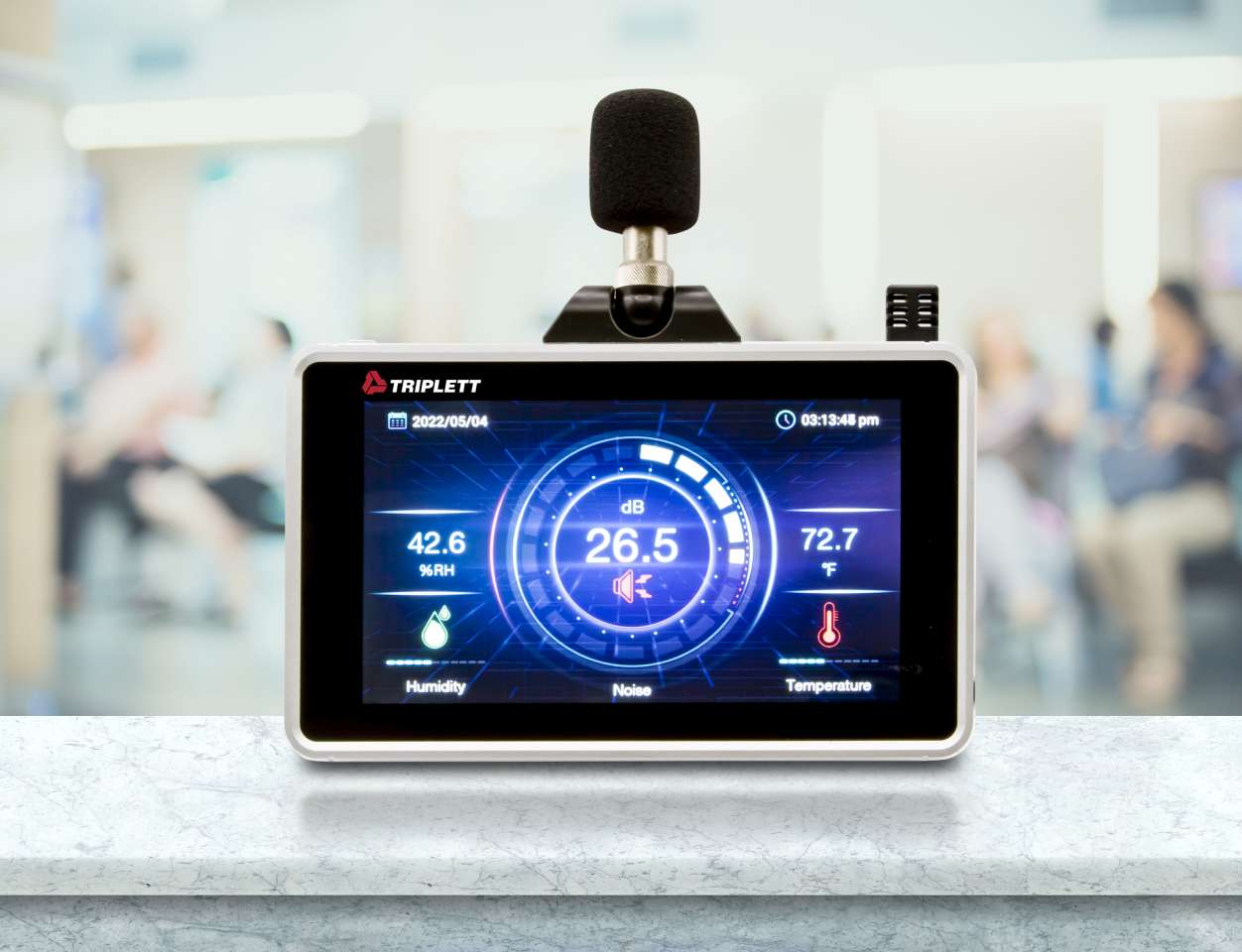

The Triplett EMDL700 Temperature/Humidity/Sound Datalogger records up to 20,000 data points. The 7" high-resolution touch screen color LCD display (1024x600) displays a real time graphical curve with zoom and digital display of readings and has a brightness adjustment and screen saver with adjustable start time. It features High/Low audible and visual alarms (high alarm only for sound), 1 second to 24 hour sampling rate with manual start/stop, and a progress bar that indicates used/free memory. Sound measurement has a ±1.4dB accuracy (IEC61672 -1 Class 2). Additional features include: User selectable °C/°F, Max/Min for recording the highest and lowest readings, date and time setting, USB interface for downloading recorded data to your PC in CSV format, and a built-in desk stand and wall mounting bracket. Comes complete with sensor probe with 3.3ft (1m) cable, windscreen, USB cable, 3.7V Lithium battery, and universal AC adapter/charger. 1 year warranty.
Features:
- Records up to 20,000 data points
- 7" high-resolution touch screen color LCD display (1024x600)
- Real time graphical curve with zoom and digital display of readings
- Brightness adjustment and screen saver with adjustable start time
- High/Low audible and visual alarms (high alarm only for sound)
- 1 second to 24 hour sampling rate with manual start/stop
- Progress bar indicates used/free memory
- USB interface for downloading recorded data to your PC in CSV format
- Built-in desk stand and wall mounting bracket
Includes: Includes sensor probe with 3.3ft (1m) cable, windscreen, USB cable, 3.7V Lithium battery, and universal AC adapter/charger
Battery Type: 3.7V Lithium battery
| Specifications |
|---|
| Temperature | -4 to 176°F (-20 to 80°C) |
| Accuracy | ±0.9°F/0.5°C at 14 to 176°F (-10 to 80°C) |
| Relative Humidity | 10 to 95%RH |
| Accuracy | ±2.5%RH at 20 to 80%RH |
| Sound Level | 30 to 130dB |
| Accuracy | ±1.4dB (1kHz) |
| Frequency Range | 31.5Hz to 8kHz |
| Frequency Weighting | A and C |
| Response Time | Fast (125ms) and Slow (1s) |
| Resolution | 0.1°F/°C; 0.1%RH/0.1dB |
| Memory | 16GB |
| Datalogging Points | 20,000 points total |
| Sampling Intervals | 1sec to 24hr |
| PC Interface | USB |
| Power | 3.7V Lithium Battery/5V 2A AC Adapter |
| Dimensions | 7.1 x 4.5 x 0.7" (180 x 115 x 18mm) |
| Weight | 1lbs (450g) |
