The Triplett SLM400-KIT Sound Level Meter with Calibrator Kit can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications. The Sound Level Meter meets IEC 61672-1 type 2, ANSI S1.4 Type 2 with ±1.5dB accuracy. It features a 35 to 130dB range plus A and C weighting with selectable fast/slow response time. The calibrator fits 1/2" diameter microphones and has selectable 94dB and 114dB output with ±0.5dB accuracy. Calibrator output frequency is ±4%@1kHz. The kit includes Type2 Sound Level Meter with 9V battery and windscreen plus Sound Level Calibrator with 9V battery, and hard carrying case.
Features:
- Meets IEC 61672-1 type 2, ANSI S1.4 Type 2
- 35 to 130dB over 2 ranges
- ±1.5dB accuracy
- A and C weighting with selectable fast/slow response time

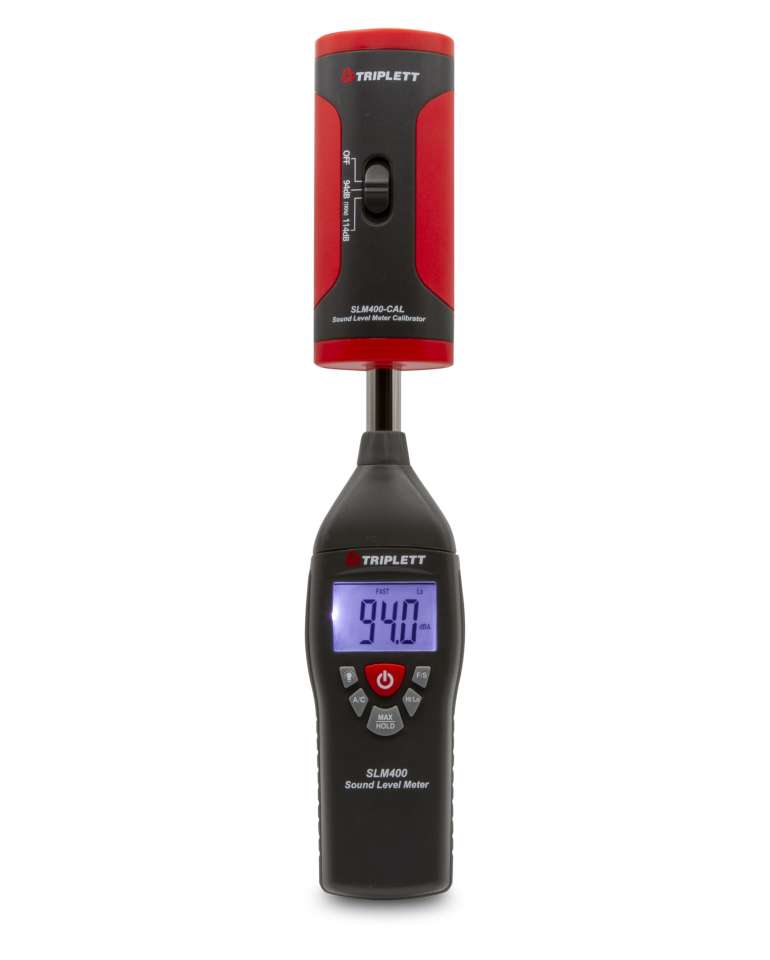

- Calibrator with selectable 94dB and 114dB output at 1kHz
- Fits ½” diameter microphones
- Output Frequency ±4%@1kHz with ±0.5dB accuracy

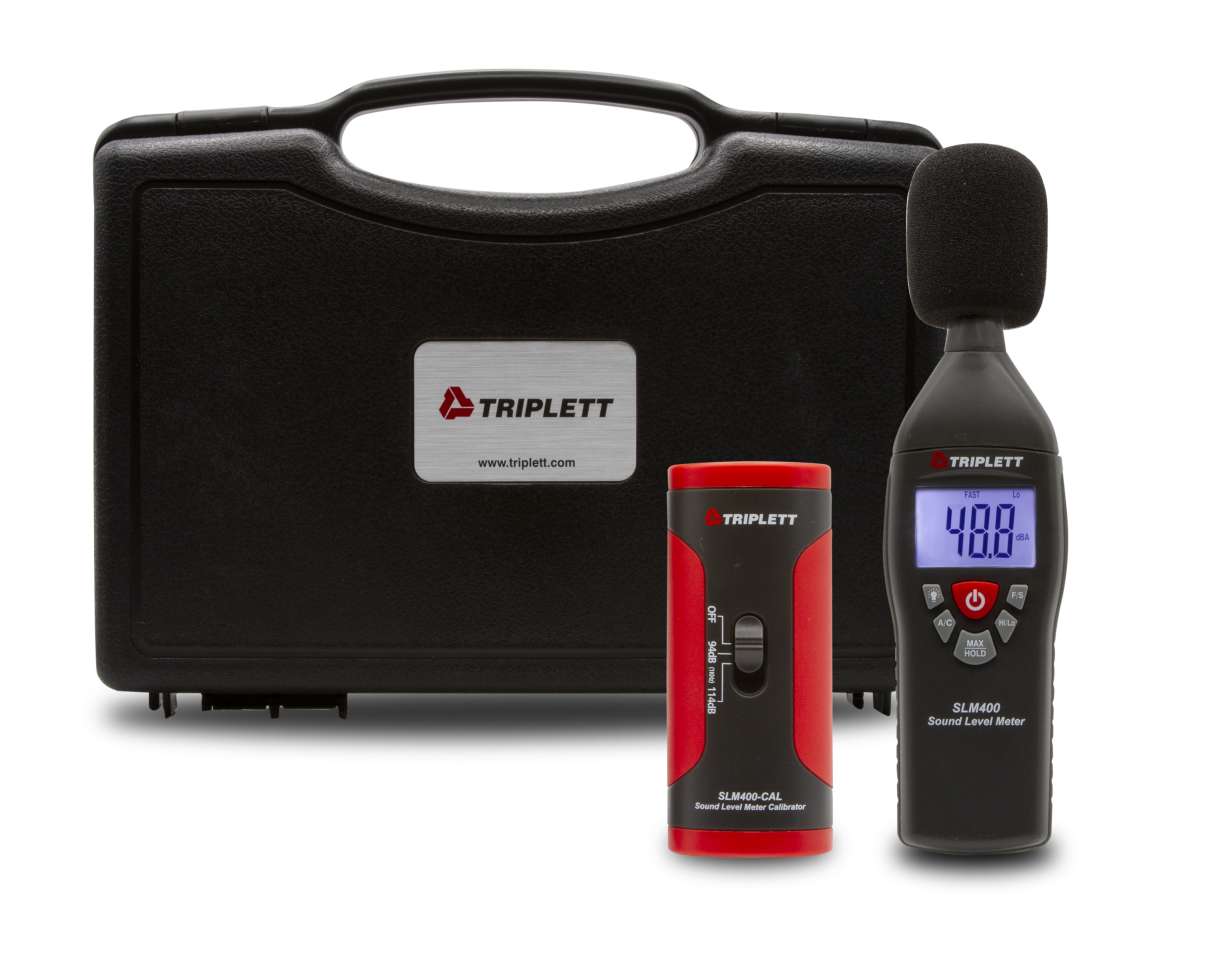

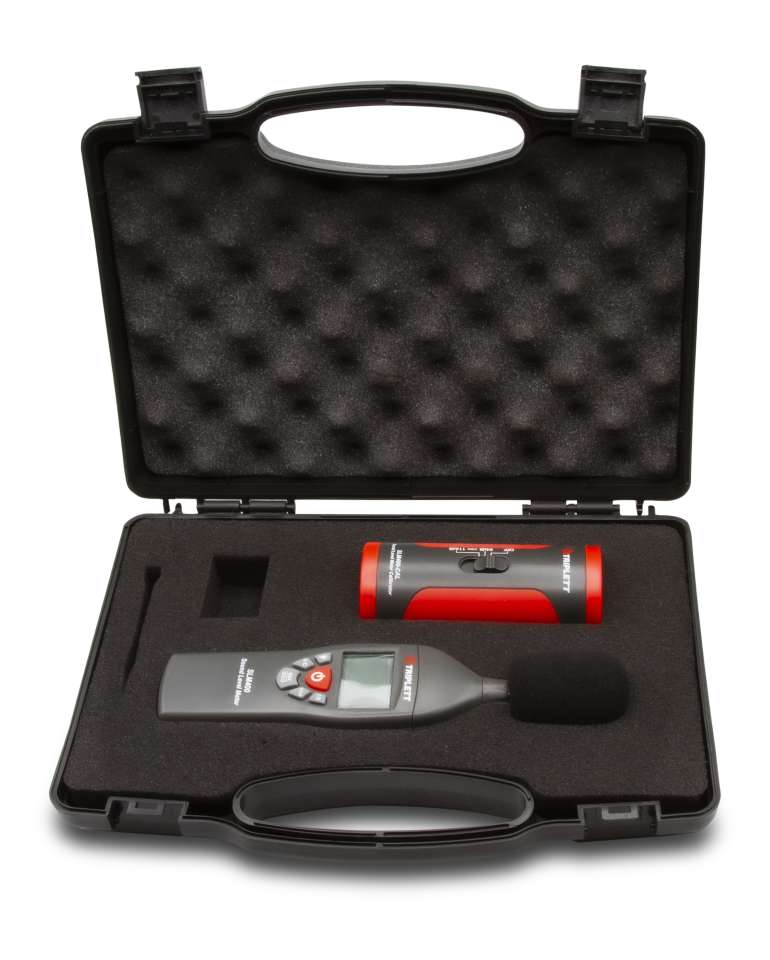

Includes: Includes Type2 Sound Level Meter with 9V battery and windscreen plus Sound Level Calibrator with 9V battery, and hard carrying case
Battery Type: 9V battery
| Specifications |
|---|
| SLM400 / SLM400-KIT |
| Measurement Ranges | Low: 35 to 100dB; High: 65 to 130dB |
| Bandwidth | 31.5 to 8kHz |
| Resolution | 0.1dB |
| Accuracy | ±1.5dB |
| Standards | Meets IEC 61672-1 type 2, ANSI S1.4 Type 2 |
| Frequency Weighting | A and C (selectable) |
| Response Time | Fast: 125ms / Slow: 1s |
| Power | 9V Battery |
| Includes Calibrator | No / Yes |
| Dimensions (Meter) | 9.5.2.7 x 1.9 x 1" (240 x 68 x 25mm) |
| Weight | 6.75oz (210g) |
Warranty: 2yrs
