The Flir MR160-KIT5 has all the tools you need to quickly locate and diagnose moisture issues. Featuring Infrared Guided Measurement (IGM™), the MR160 visually guides you to the problem so you can confidently take measurements and analyze readings.
An integrated pinless sensor and an external pin probe provide the flexibility to take either intrusive or non-intrusive measurements. The kit also includes a hammer/wall cavity probe combo for additional measurement applications.
Features:
- Two ways to measure: a built-in pinless sensor for non-intrusive readings and an external pin probe for intrusive ones.
- Hard-to-reach areas: the hammer and wall cavity probes cover additional measurement situations.
- Documentation: thermal image and moisture results appear together on one screen, and saved images can be moved to a PC to build reports with FLIR Tools software.
- Targeting: a laser pointer and on-screen cross-hairs.
- Alarms: high and low moisture alarms.
- Build: rugged, compact, with an internal rechargeable battery

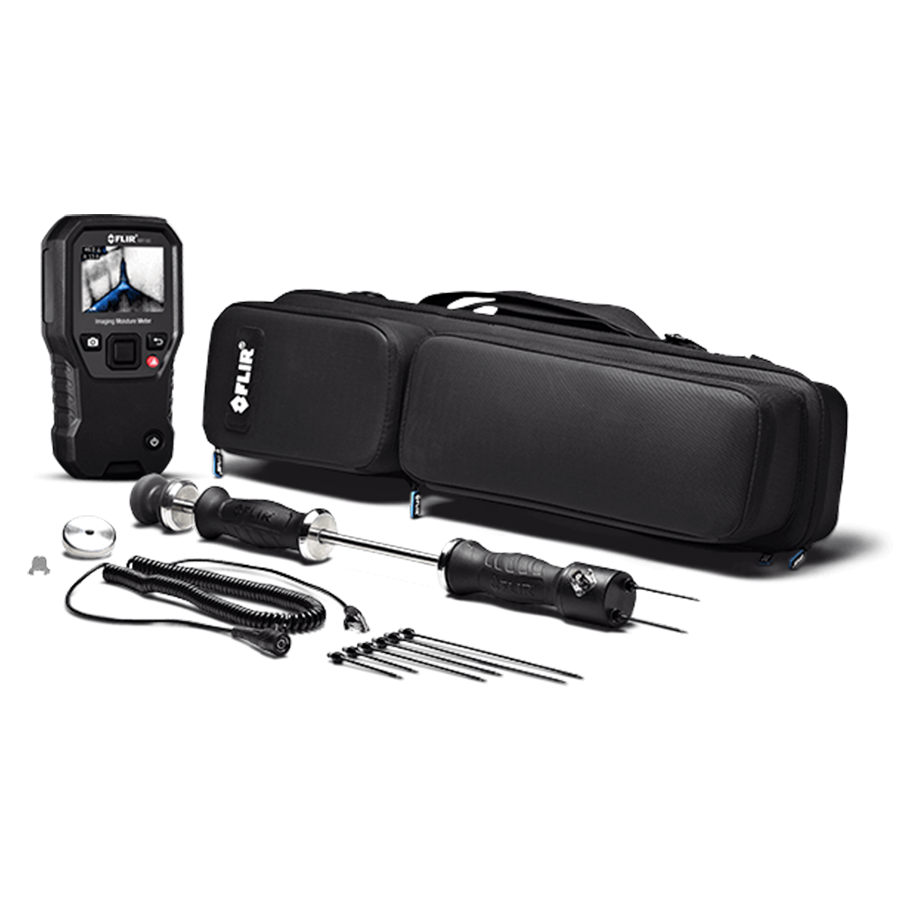

What's Included:
- FLIR MR160 imaging moisture meter, which comes with the MR02 standard pin probe.
- FLIR MR08 hammer and wall cavity probe combo. It is stainless steel and can be set up as a slide hammer, wall probe or hammer probe, with insulated hardened steel pins.
- USB charging: the meter charges through a USB port or the included USB charger.
| Item |
Specification |
| Thermal detector |
FLIR Lepton microbolometer |
| Thermal resolution |
80 × 60 (4,800 pixels) |
| Field of view |
51° × 38° |
| Thermal sensitivity |
Less than 150 mK |
| Spectral response |
8–14 µm |
| Frame rate |
9 Hz |
| Minimum focus distance |
4 in (10 cm) |
| Pinless moisture range |
0–100, relative |
| Pinless depth |
0.75 in (19 mm) maximum |
| Pinless response time |
100 ms |
| Pin moisture material groups |
9 |
| Measurement resolution |
0.1 |
| Display |
2.3 in color TFT, 320 × 240 |
| Internal memory |
4 GB, up to 9,999 images |
| Battery |
3.7 V, 3000 mAh Li-ion, rechargeable by micro USB |
| Battery life |
18 hours continuous maximum; about 4 work weeks of typical use |
| Laser |
Single pointer aimed at the center of the thermal image, Class 2 |
| Kit shipping size and weight |
11 × 18 × 24 in; 13.25 lbs |
| Warranty |
FLIR 2-10 limited warranty www.flir.com +20 |
